Jincheng Gear Ring Assembly

Jincheng Gear Ring Assembly

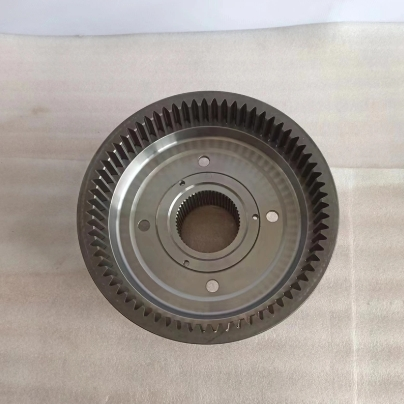

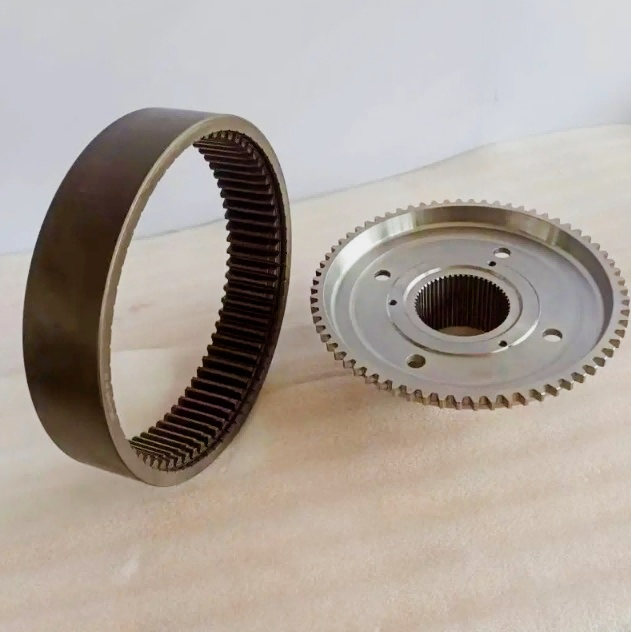

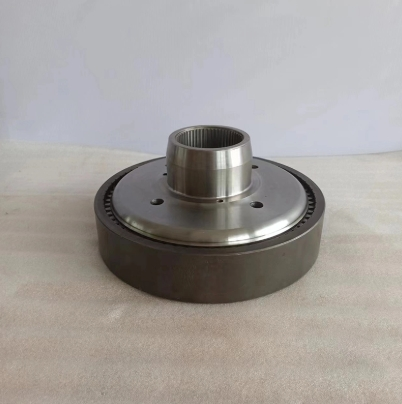

The Jincheng ring tools meeting is a element of the 5-ton wheel loader power axle assembly. It is a cut up type, with a fifty three spline help and a sixty seven teeth ring gear, used for the Jincheng power axle of the 5-ton loader.
The ring tools is constant to the wheel aspect assemblies at each ends of the pressure axle housing thru half of shaft splines. The electricity transmitted from the important transmission motives the planetary gears to roll alongside the constant internal ring tools and pressure the planetary service and force wheels to rotate. Improve the meshing prerequisites between the solar tools and planetary gear.

Product Applications
The ring equipment is an vital phase of the wheel reducer of the loader, and the technique of deceleration and torque amplify is realized thru the meshing with the interior gears of the planetary wheel provider assembly. The unique graph and manufacture of the ring tools ensures a tighter and smoother engagement with different gears. The ring equipment is made of high-strength material, which can stand up to the big load and affect generated by way of the loader at some point of operation, and extend the existence of the loader.
