Loader Main Drive Assembly

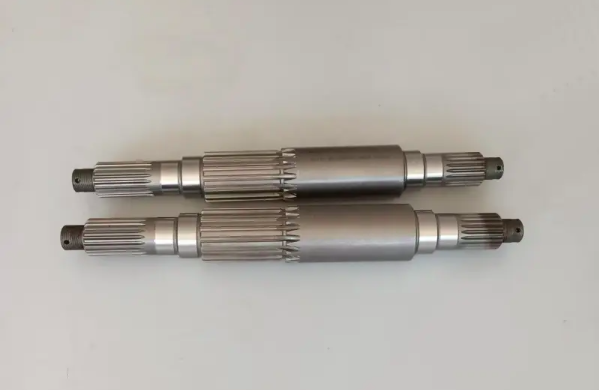

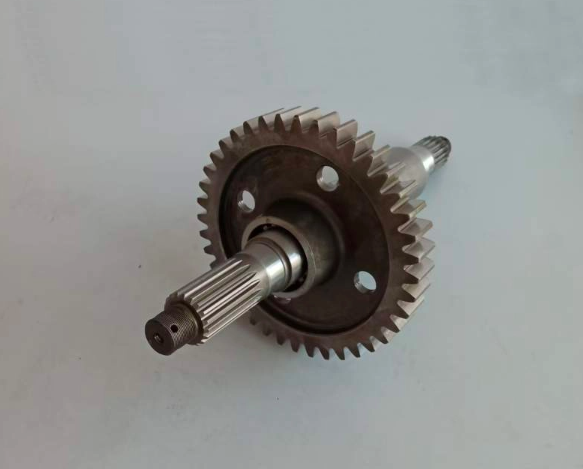

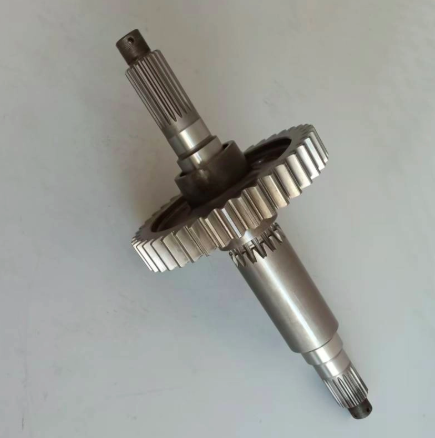

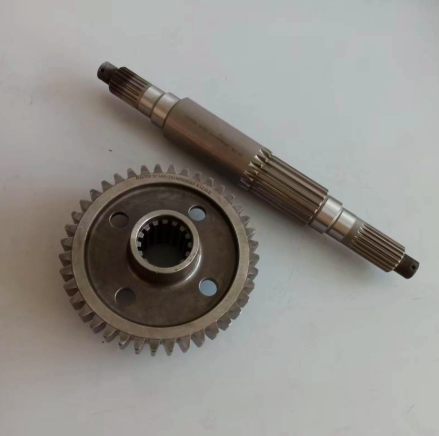

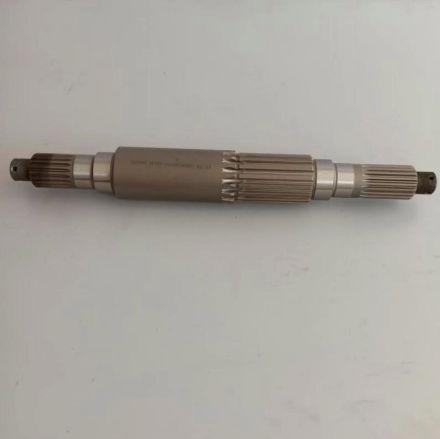

Transmission Output Shaft：
The output shaft 9F560-24A06001B0 is the core factor of the gearbox meeting of the Lovol 5-ton loader, with 19 splines at each ends. One give up is related to the the frontoutput flange, and the different stop is related to the rear output flange. There are sixteen spline curves in the middle. The output shaft is the shaft accountable for outputting strength in the gearbox. Responsible for transmitting the strength generated with the aid of the engine to the wheels, consequently it should meet the necessitiesof excessive strength, excessive precision, and excessive put on resistance.

Functional Characteristics Of the Output Shaft Of The Loader Gearbox

1.As the core aspect of the transmission system, the output bearing of the gearbox performs an essential function in transmitting the electricity generated by means of the engine to the wheels. It achieves clean strength transmission via meshing with gears, making sure that the loader can acquire ample using pressure below more than a few working conditions.

2. The output shaft of the gearbox no longer solely transmits power, however additionally achieves velocity rules and torque transformation via one-of-a-kind mixtures of tools sets. This allows the loader to flexibly modify its using pace and traction pressure in accordance to genuine wishes to adapt to specific work scenarios.

3.During operation, the output shaft of the gearbox desires to face up to considerable masses from the wheels and the physique of the vehicle. Therefore, it have to have adequate electricity and stiffness to make sure that it will now not deform or be broken when subjected to heavy loads.
