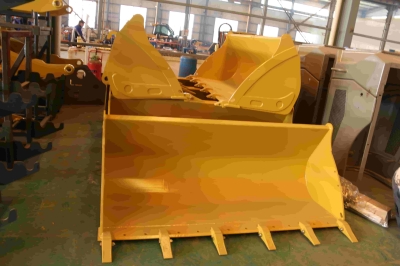

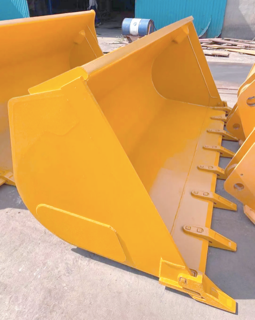

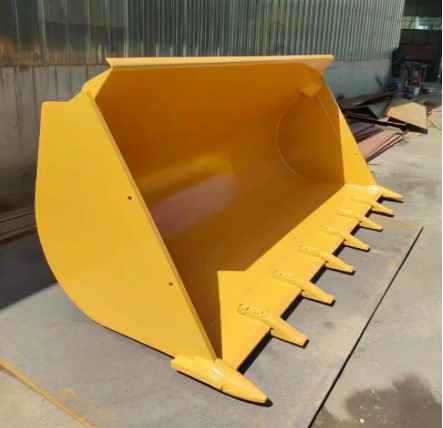

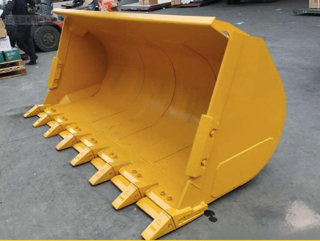

SDLG Loader Bucket

SDLG Loader Bucket

1. Professional design, reliable structure

The bucket is welded with high-performance steel plates, and the connecting seat is cut and welded with wear-resistant steel plates, resulting in a compact and sturdy structure.

The front, bottom, side panels, and sides of the bucket have all undergone strengthening treatment, and after welding, they have been shot blasted as a whole to eliminate stress and ensure long-term reliability.

2. Strong wear resistance and long service life

The key parts of the bucket, such as the bottom and rear wall, are made of high-strength wear-resistant steel plates. The bucket teeth are designed with welded inserts and come standard with small wear-resistant plates, significantly improving the wear resistance performance.

In response to harsh working conditions such as mining, the inner wall of the bucket is strengthened, and wear-resistant plates are installed at the bottom of the bucket to extend its service life.

3. Exquisite craftsmanship and quality assurance

Select high-quality alloy steel from well-known steel companies, and use high-quality wear-resistant steel plates for the main blade and side blades to ensure the strength of the bucket.

Using advanced welding robots for welding, the weld seam is full and deeply penetrated, and the machining center processes the pin hole to ensure accuracy and durability.

4. Adaptation to working conditions and efficient operation

The bucket design is optimized according to different working conditions, such as mining buckets suitable for harsh working conditions, earthmoving buckets suitable for clay working conditions, and narrow buckets suitable for excavation operations such as water conservancy and highways.

The bucket works in coordination with the entire system, with precise coordination, reliable operation, and improved work efficiency.

5. Safety protection and easy operation

The bucket is equipped with anti falling guide plates to prevent materials from falling backwards, effectively protecting the boom and oil cylinder, and improving operational safety.

The layout of the operating handle and switch is reasonable, easy to operate, and the stepper dashboard is colorful and eye-catching, with strong recognizability and ease of operation.

Example of bucket size

1. L955HL loader:

Rated load capacity: 5300 kilograms

Bucket capacity: 2.7 to 5.0 cubic meters

Maximum unloading height: 3450 millimeters

Corresponding unloading distance: 1170 millimeters

2. L968H loader:

Rated load: 6000 kilograms

Standard bucket capacity: 3.5 cubic meters

Overall dimensions of the machine: 9250 × 3200 × 3470mm

Wheelbase: 3400 millimeters

3. LG956L loader:

Rated load capacity: 5000 kilograms

Bucket capacity: typically 2.8 cubic meters (also available in 2.5 or 2.7 cubic meter versions)

Maximum unloading height: 3180 to 3700 millimeters

Corresponding unloading distance: 1090 to 1160 millimeters
