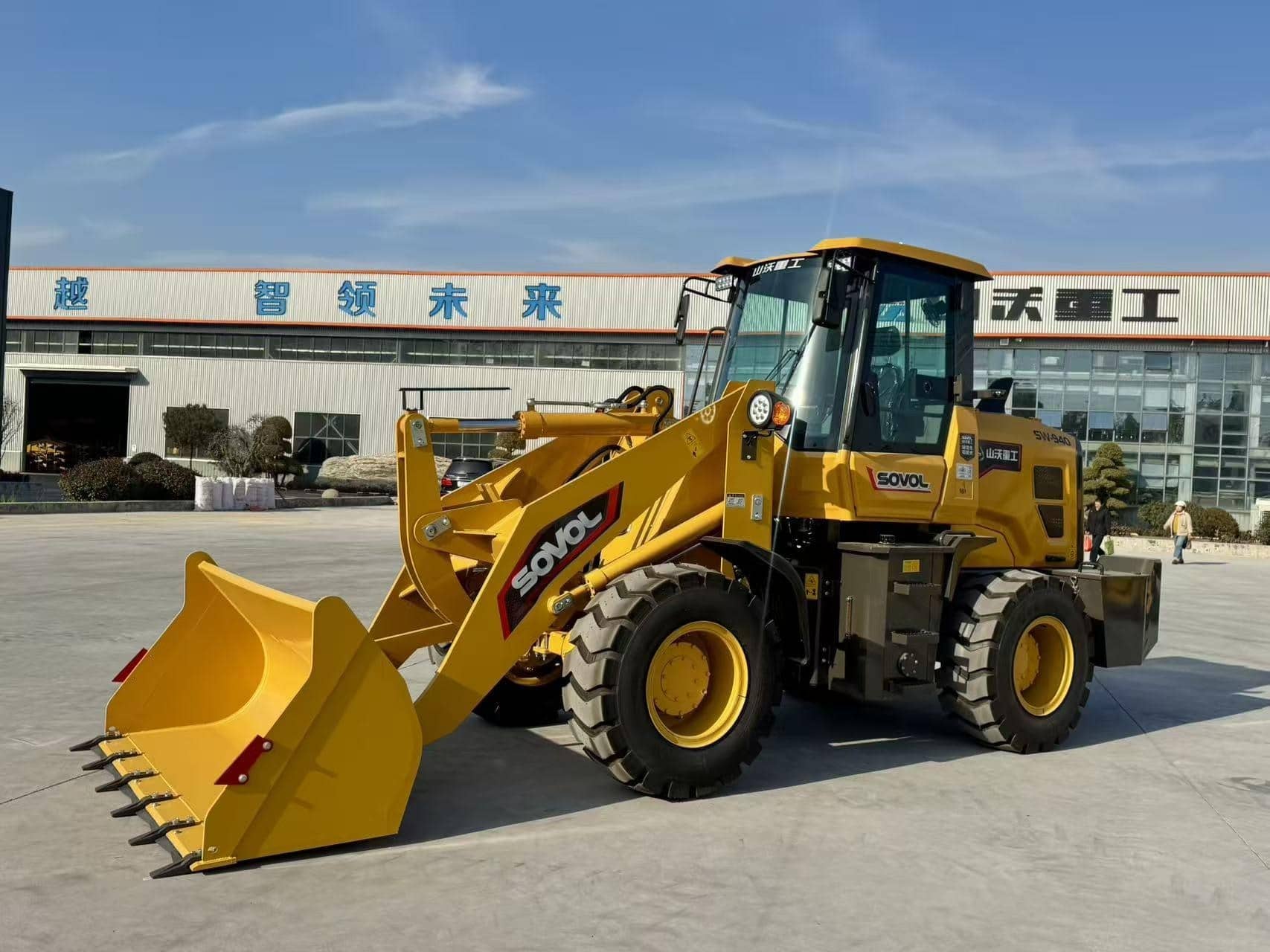

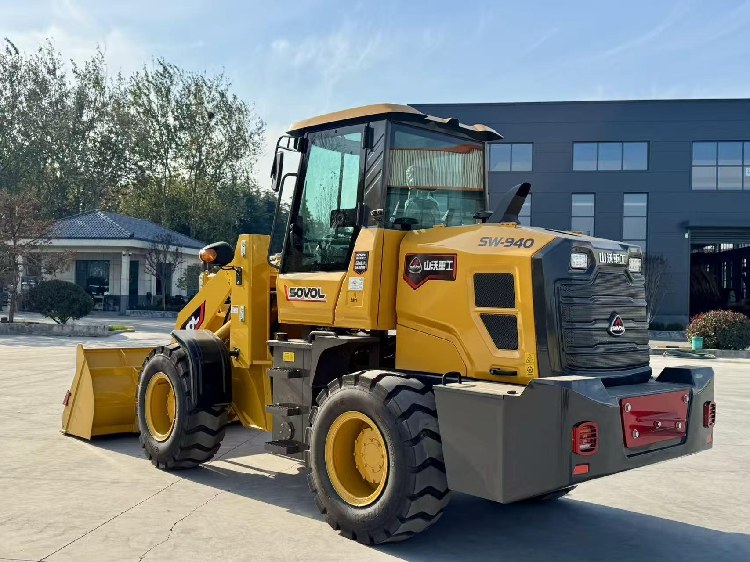

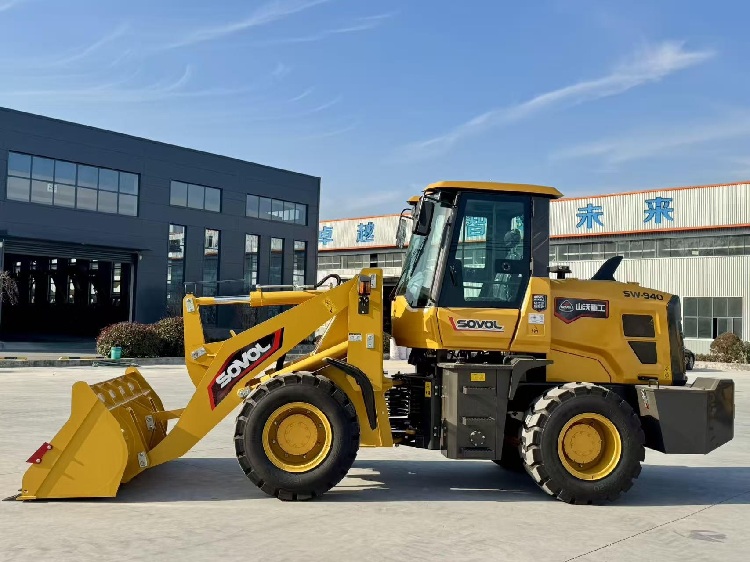

Loader-sw940

1. Product Positioning

2. Power and Transmission System

• Engine: Adopts Cummins B6.7 in-line six-cylinder engine with a rated power of 129kW (173HP) and a maximum torque of 1120Nm. It features excellent low-speed high-torque performance, providing strong power for digging, climbing and heavy-load starting with superior power reserve compared with peer models.

• Emission Standard: Complies with the world’s highest non-road emission regulations of EU Stage V / EPA Tier 4 Final, suitable for mainstream overseas markets including Europe, America, Australia and the Middle East.

• Transmission: Equipped with ZF 4WG190 high-end power-shift transmission with automatic and manual dual shift modes. It ensures smooth shifting without jerking, low power loss and outstanding stability during driving, acceleration and operation on complex terrains.

• Axle & Braking System: Adopts ZF professional heavy-duty front and rear axles. The front axle is equipped with a limited-slip differential to adapt to muddy and bumpy road conditions. Standard wet disc brake and parking brake deliver sensitive braking performance and maintenance-free durability.

3. Hydraulic System and Operating Performance

• Hydraulic Parameters: Maximum flow 220L/min, system pressure 25MPa, with fast power response and excellent fine control performance, balancing precise operation and heavy-load shoveling.

• Operating Efficiency: The standard operating cycle is only 10.2 seconds (lifting 5.4s + dumping 1.6s + lowering 3.2s), significantly improving continuous loading efficiency.

• Operating Specifications: Standard bucket capacity 2.3m³ (optional 2.7m³ enlarged bucket), rated load 4.2 tons, maximum breakout force 107kN, straight tipping load 10.1 tons, full-turn tipping load 8.57 tons. It operates stably without tilting or shaking under heavy loads, easily handling hard soil, ore, sand and other difficult-to-dig materials.

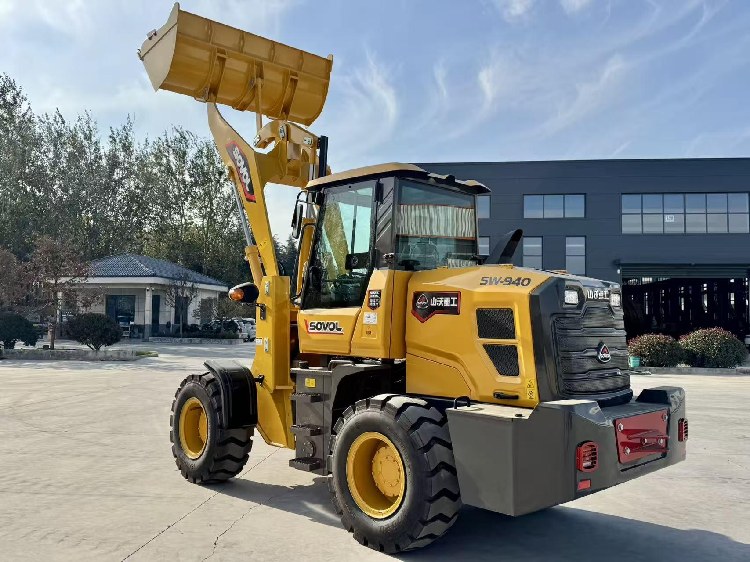

• Dumping Performance: Maximum hinge lifting height 3905mm, maximum dumping height 2765mm, dumping reach 1158mm, perfectly matching large trucks and high silo loading requirements.

• Functional Configuration: Standard third auxiliary hydraulic circuit, burst-proof hydraulic valve, boom damping and floating function, supporting attachment modification and realizing multi-purpose operation.

•


4. Structural Design and Durability

• Reinforced Structure: Thickened integrated heavy-duty frame and extended reinforced boom with strengthened key stress parts, providing excellent torsion resistance, impact resistance and wear resistance without deformation under long-term heavy load.

• Upgraded Protection: Standard chassis guard plate and reversible cooling fan effectively prevent dust and impact damage, adapting to dusty, gravelly and muddy harsh working conditions.

• Core Components: All core hydraulic, transmission and electrical parts adopt world-renowned brands, ensuring low failure rate and higher stability than competing models.

5. Intelligent Configuration, Safety and Comfort

• Intelligent Monitoring: High-definition TFT instrument panel displays real-time machine working conditions, fuel consumption and fault codes with built-in self-diagnosis function for intuitive maintenance; supports OTA remote upgrade.

• Panoramic Safety: Standard 360° panoramic vision system eliminates all operation blind spots, ensuring zero-risk operation in narrow spaces, reversing and turning scenarios.

• Fleet Management: Supports keyless start and multi-group PIN code permission management to accurately control equipment access, preventing unauthorized use and misoperation, ideal for standardized fleet management.

• Safety Cab: Standard ROPS/FOPS certified cab with high-strength protective structure provides all-round operator safety protection. The cab features noise reduction, wide vision and air conditioning, ensuring comfort during long-hour operation.

• Optional Intelligent Configuration: Tire pressure monitoring, rear anti-collision warning, intelligent weighing system and reverse automatic braking are optional for upgraded intelligence.

6. Maintenance Convenience and Operation Advantages

• Easy Maintenance: Open machine layout and centralized maintenance points integrate daily inspection items such as oil, filter and hydraulic fluid replacement, saving time and effort for routine maintenance.

• Long-term Fuel Saving: Precisely matched power and hydraulic systems adapt to different working conditions automatically, realizing fuel saving under no-load and light-load states and reducing long-term operation costs.

• High Attendance Rate: Low-failure core configuration and convenient maintenance design minimize downtime and maximize annual attendance and profitability.

• Global After-sales Service: Supported by SANY’s global service network with sufficient overseas parts inventory and rapid after-sales response, providing complete full-life-cycle operation and maintenance guarantee with zero after-sales worries.

•


7. Core Technical Parameters (Official Standard)

8. Application Scenarios
