2 Ton Wheel Loader

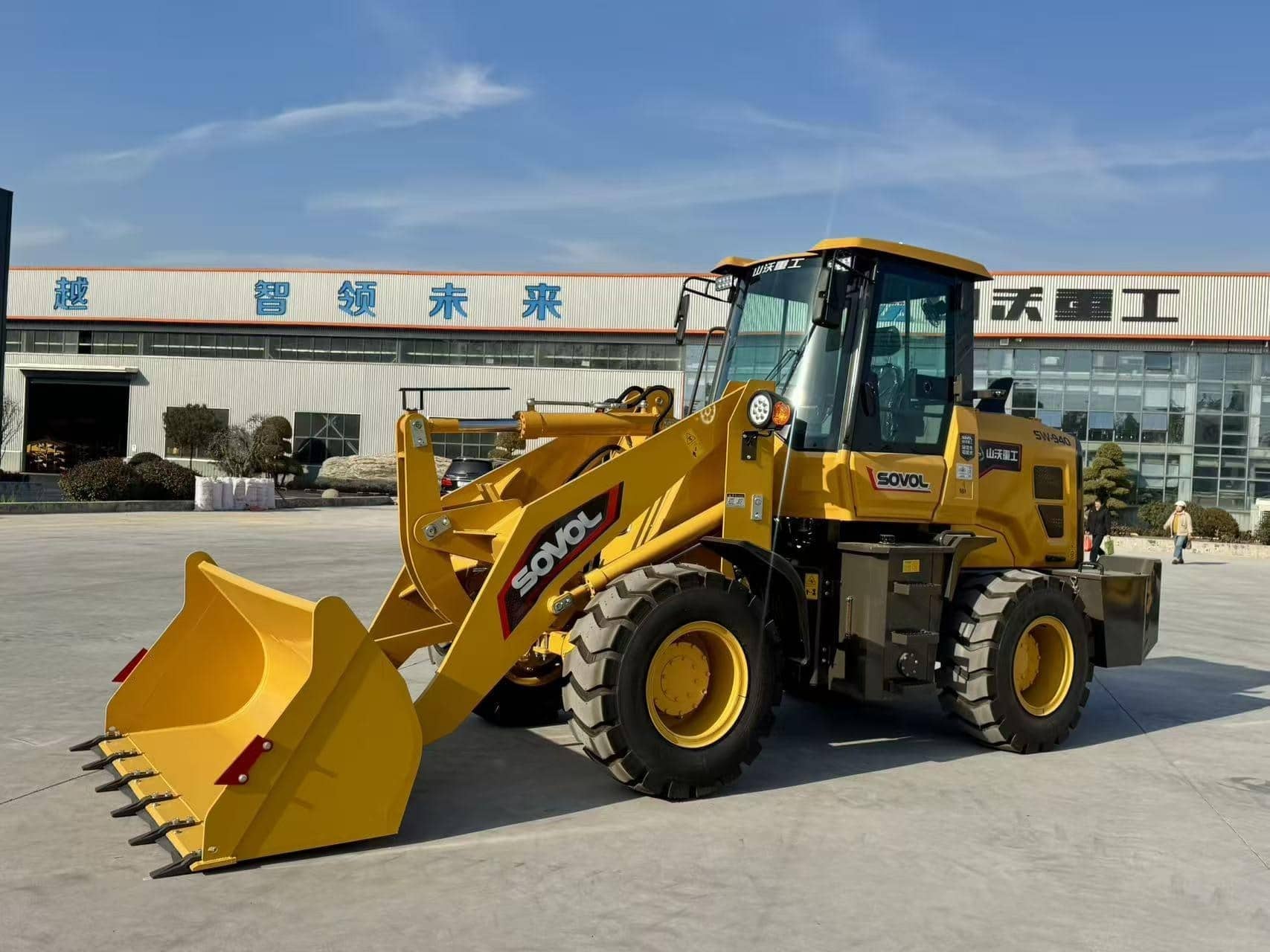

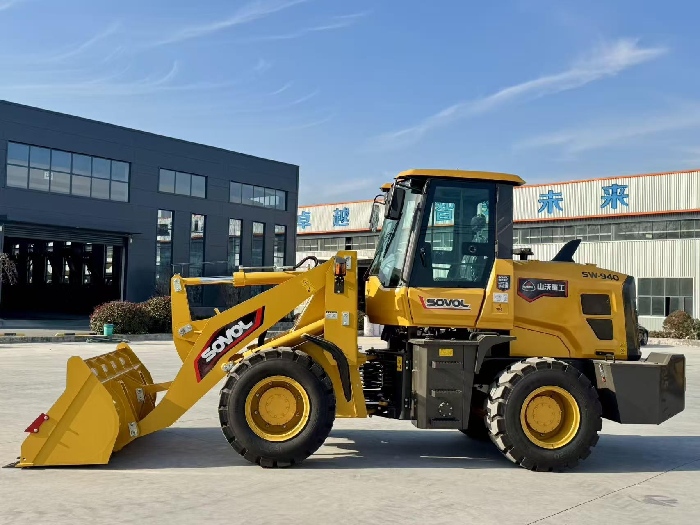

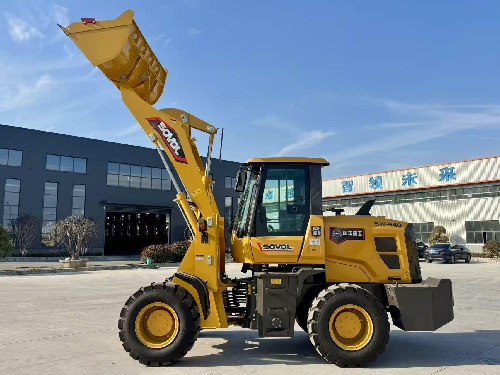

The SW-940 Wheel Loader is a popular 2-ton four-wheel drive compact wheel loader specially engineered for global construction and agricultural markets. It has a rated payload of 2000 kilograms and an overall operating weight reaching 6380 kilograms, which delivers reliable stability during full-load loading and digging tasks. Powered by the trusted Yunnei YN38GBZ turbocharged diesel engine rated at 76 kilowatts, this power unit is proven in various tough working environments including dusty sand yards, muddy farmlands and high-temperature open construction sites.

The standard working configuration comes with a 1.0 cubic meter manganese steel loader bucket with a bucket width of 2000mm, capable of efficient bulk material loading such as sand, gravel, grain and farm manure. As for dumping height, the factory standard configuration is 3.6 meters, while extended boom options of 3.9 meters and 4.5 meters are available for customers who need to load high-sided trucks conveniently. The machine is fitted with a split high-low speed gearbox, allowing operators to shift between low-torque working gear and high-speed travelling gear freely; its maximum travelling speed hits 38 kilometers per hour to improve site transfer efficiency.

This loader adopts full-time four-wheel drive design matched with wheel reduction drive axles, which greatly enhances the vehicle’s passing performance on slippery, uneven and soft ground conditions. The equipped 16/70-20 heavy-duty wear-resistant tires effectively reduce tire abrasion under frequent harsh loading operations. The overall dimension of SW-940 is 6750mm × 2750mm × 3000mm, with a minimum turning radius of only 4750mm, making flexible operation possible inside narrow farms, small warehouses and compact urban construction zones. In terms of safety configuration, a dual-circuit air brake system is installed to guarantee stable and sensitive braking performance even under fully loaded downhill conditions. Every finished SW-940 loader passes strict factory inspection and owns CE and ISO9001 certification, complying with mainstream import standards of Southeast Asia, Africa, the Middle East and other global regions for smooth customs clearance.

At the heart of SW-940 lies the well-calibrated Yunnei YN38GBZ turbocharged diesel engine complying with mainstream emission standards, characterized by strong low-speed torque output. Outstanding low-speed torque enables the loader to tackle steep slopes, compact hard soil and heavy bulk material without power deficiency, a core advantage when working at quarry sites and large-scale breeding farms. To solve overheating problems during long-hour continuous heavy-duty work, manufacturers equip the machine with an enlarged split cooling radiator with larger heat dissipation area. This upgraded radiator structure keeps engine operating temperature within normal range under all-day non-stop operation, even in hot summer climates or dust-intensive working conditions.

Besides stable power output, the engine’s optimized fuel injection structure effectively controls daily fuel consumption. Compared with same-class compact wheel loaders on the international market, SW-940 achieves obvious fuel cost reduction under identical working intensity, helping overseas clients cut long-term operating expenditure significantly. The engine assembly undergoes strict bench testing before delivery to reduce early breakdown risks and extend the whole service life of the power system.

The vehicle frame adopts thickened full penetration welding integral beam plus solid integrated stamped rear counterweight, the most critical design for anti-tipping performance. Thanks to reasonable weight distribution and solid counterweight structure, the loader keeps balanced when lifting rated 2-ton loads and generates powerful breakout force to excavate hard clod, frozen soil and compact construction waste smoothly. Key hinge joints connecting front and rear frame use thickened solid pin shafts with abrasion-resistant bushings, greatly improving the frame’s anti-torsion capability when frequently passing bumpy, rugged ground and avoiding permanent frame deformation after long-term heavy-load use.

Matching with robust frame is the mature combination of wheel reduction four-wheel drive axle and dual-range gearbox. Operators shift to low-speed gear for high-torque digging and shoveling work, and switch to high-speed gear for fast short-distance material transportation within construction yards or farm areas. Four-wheel drive design delivers reliable traction on muddy farmland, wet sand pits and slippery unfinished roads, effectively preventing wheel slipping and vehicle trapping, cutting unnecessary downtime caused by poor road conditions.

SW-940 applies classic Z-bar reverse linkage structure for its front working mechanism, a mature hydraulic layout widely recognized in global compact loader industry. Thickened high-pressure hydraulic cylinders with multi-layer imported oil sealing components are adopted for boom and bucket cylinder, drastically lowering hydraulic oil leakage rate and reducing regular maintenance work related to oil replacement and seal repair. The advanced dual-pump confluence hydraulic system accelerates three core movements including boom lifting, bucket curling and boom lowering, shortening overall cycle time of each loading action and boosting daily loading throughput for end users.

The whole operator cabin goes through electrophoretic anti-rust treatment to prevent corrosion under humid, rainy or high-dust outdoor working environments. Large-area full-view tempered glass surrounds the cabin to deliver wide front and side vision, helping operators observe bucket position and surrounding obstacles clearly during tight-space operation. High-brightness LED working lamps are installed on cabin top and front bumper to support safe construction at dawn, dusk and full-night shift work.

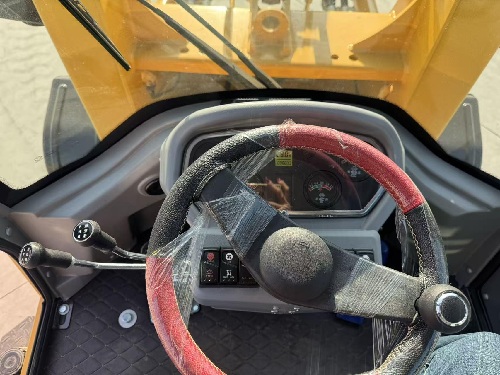

The machine is equipped with single-lever pilot hydraulic control instead of traditional mechanical hard pull control. Pilot operation features light operating force, greatly easing operator fatigue after long-hour continuous work; new operators can master basic manipulation within a short training period. Inside the cabin sits shock-absorbing suspended driver seat to buffer bump vibration from rough ground, further improving riding comfort. A centralized digital dashboard is mounted in front of the driver, displaying real-time data including engine water temperature, lubricant oil pressure and accumulated working hours, allowing drivers to monitor machine running status timely and arrange routine maintenance reasonably.

Dual-circuit air brake system serves as the core safety guarantee of SW-940. The air brake responds rapidly upon pedal stepping, maintaining stable braking effect under full-load downhill transportation and emergency stop scenarios to avoid rollover or collision accidents. Most core spare parts of SW-940 adopt universal domestic standardized parts, which are widely available in global aftermarket markets. Overseas buyers can source replacement components locally at affordable prices without waiting for long-term international spare part shipment, cutting maintenance downtime and component procurement cost largely. All finished loaders complete full factory pre-delivery debugging before storage; large quantity of finished machines are kept in warehouse to support fast container loading and sea shipment for global customers.

SW-940 covers diversified working demands across construction, agriculture, animal husbandry and municipal engineering sectors. In small and medium infrastructure projects, it is widely used for sand and gravel loading at aggregate yards, short-distance earthwork transportation, raw material feeding for small concrete mixing stations and auxiliary work of rural road renovation. For breeding industry clients, the loader takes charge of barn manure cleaning, feed transferring and forage stacking inside large-scale livestock farms; fruit growers apply this machine to carry fertilizers, harvest fruits and clean orchard waste efficiently.

In grain storage industry, matched with special grain bucket, SW-940 finishes grain pile turning, warehouse loading and bulk grain truck feeding. When it comes to municipal environmental protection work, the equipment handles short-distance transfer of construction waste, greening soil backfilling and landscaping material transportation inside residential communities and city green belts. Its compact body size enables access to narrow lanes and small enclosed yards where large-size loaders cannot enter, filling the market blank of medium-small bulk material handling equipment.

To satisfy differentiated global client demands, multiple optional configurations are available for SW-940 customization. First of all, two types of extended long boom with 3.9m and 4.5m dumping height can be selected for users needing to load high-container trucks and bulk semi-trailers. Various functional attachments are alternative options apart from standard bucket, including log grapple, pallet fork, grain-specific bucket and rock crushing bucket for special operation needs. For clients working in extreme cold or hot regions, air-conditioner installed cabin is an optional upgrade to improve driver working comfort in harsh ambient temperature. Wear-resistant widened tires are also available for customers operating on sharp-stone quarry ground to extend tire service life.

Q1: Can we customize higher dumping height for SW-940 wheel loader?A: Yes, customized 3.9-meter and 4.5-meter extended boom are optional to realize higher unloading height and match high-sided truck loading requirements.

Q2: Is it convenient to switch different working attachments on this loader?A: The machine supports quick replacement of various attachments such as log grapple, pallet fork and grain bucket to achieve multi-scenario operation with single equipment.

Q3: Does SW-940 meet relevant export certification standards for global shipment?A: Every SW-940 loader is equipped with formal CE certification and ISO9001 qualification documents, complying with import rules of most countries and regions for smooth customs clearance and container export worldwide.
