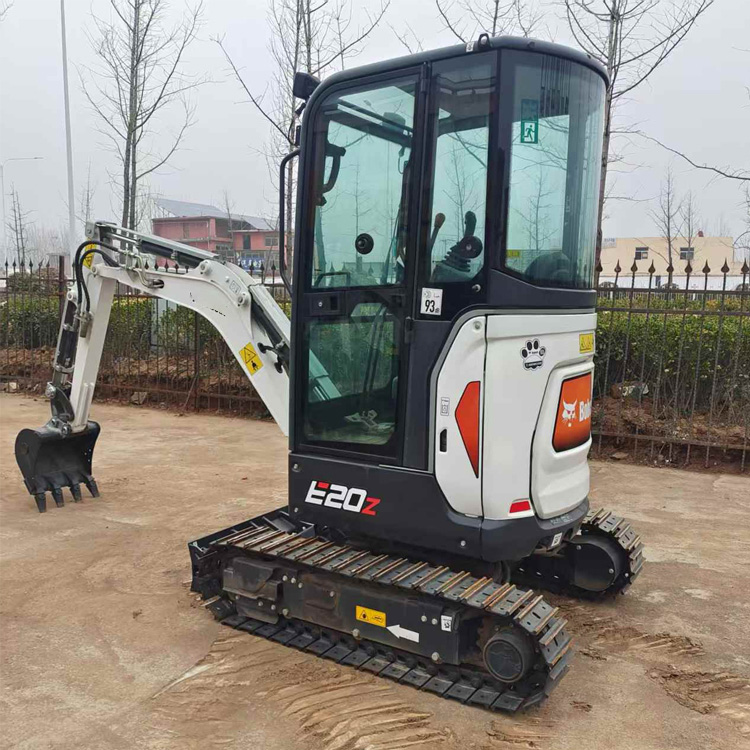

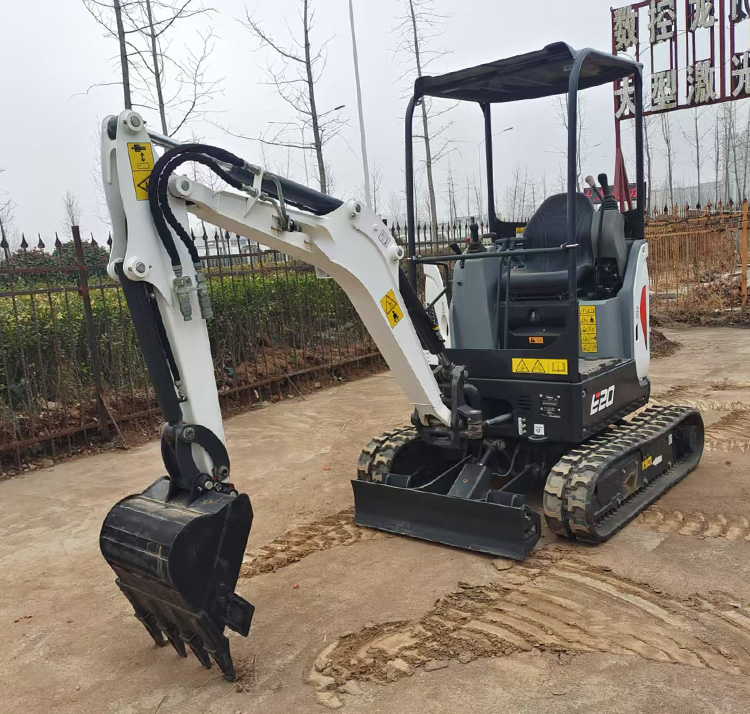

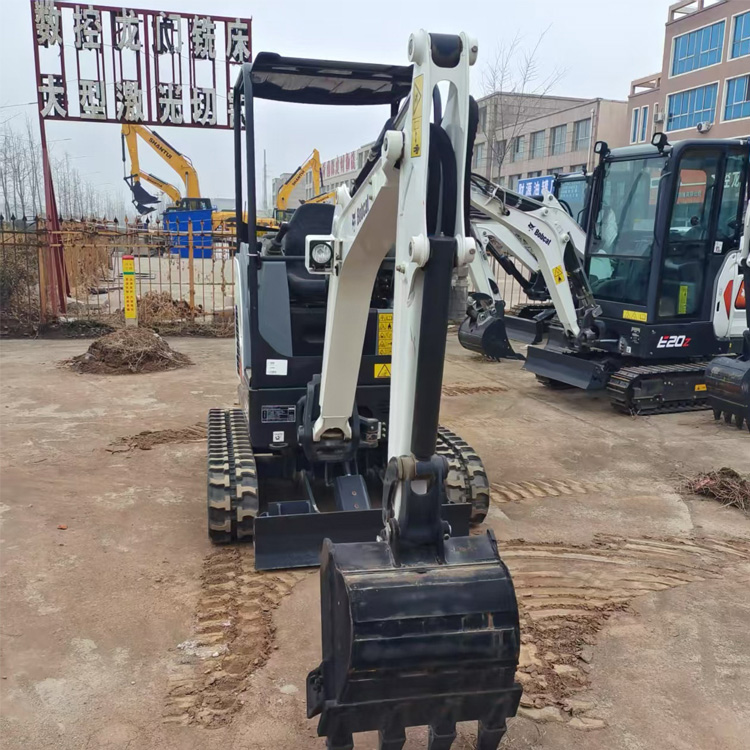

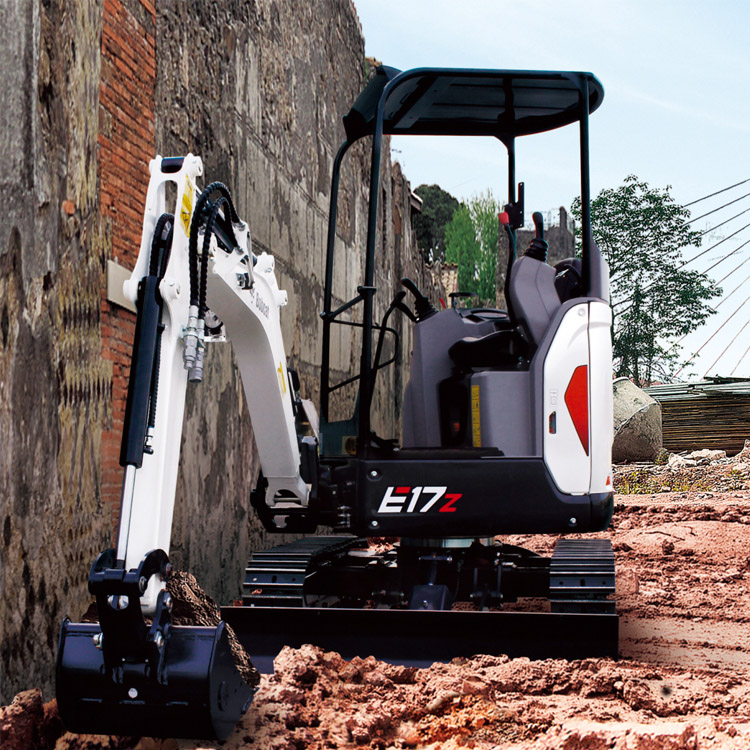

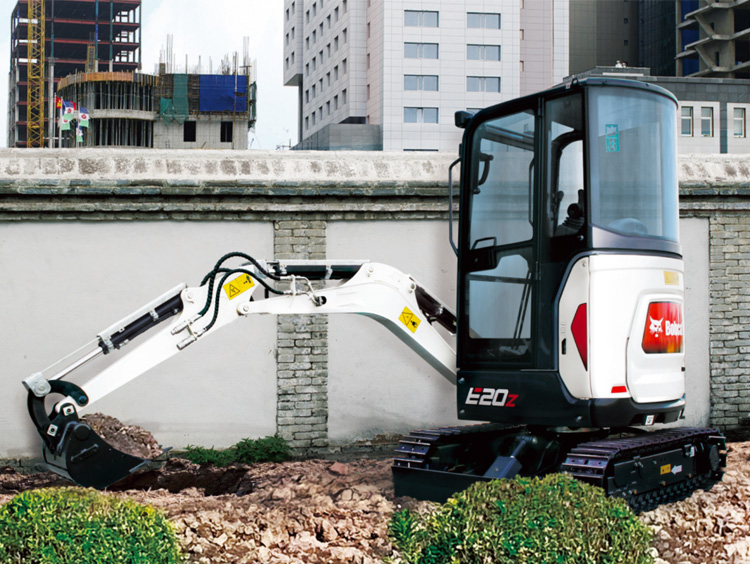

mini excavator with track

Product Overview

Weight

• Bucket capacity: 0.04 m³

• Operating weight (ISO 6016): 1953 kg

• Ground pressure: 29.7 Kpa

• Additional weight of cab: 81 kg

• Additional weight of iron track: 92 kg

Engine

• Manufacturer/Model: Kubota/D722

• Fuel: Diesel

• Number of cylinders: 3

• Displacement: 0.719 L

• Engine power (SAE J1995): 10.4 Kw

• Maximum torque (SAE J1995): 43.5 N·m

Performance

• Arm digging force (ISO 6015): 10371 N

• Bucket digging force (ISO 6015): 20835 N

• Travel speed (low speed): 2.1 km/h

• Travel speed (high speed): 4.2 km/h

Hydraulic System

• Pump type: Dual-channel piston pump + gear pump

• Pump flow: 41.3 L/min

• Auxiliary flow: 30 L/min

• Auxiliary safety pressure: 180 bar

Swing System

• Boom swing angle (left): 80°

• Boom swing angle (right): 60°

• Swing speed: 8.4 RPM
